Focusing on the export of tow trucks, the quality is as good as ever.
1 Years
| Ask Lasest Price | |
| Certification : | 9001/TS 16949、CCC、CE、ADR、DOT |
| Delivery Time : | 20-30work days |
| Payment Terms : | L/C, D/A, T/T ,D/P |
| Supply Ability : | Annual output :2000 |

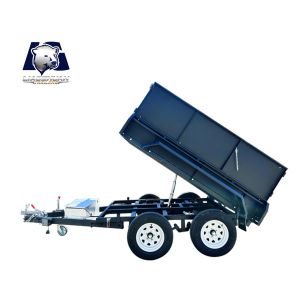

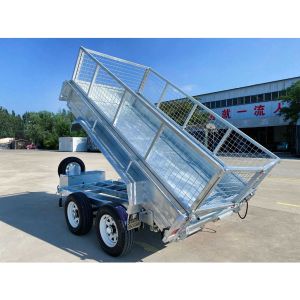

The 10×6 hydraulic hot-dip galvanized box trailer (4000kg ATM) is designed for efficient medium-duty transport. Its compact design features a powerful hydraulic tipping mechanism for easy unloading. Its hot-dip galvanized, fully welded body and chassis ensure durability and corrosion resistance.

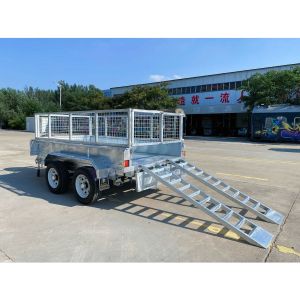

Key features include high-strength hydraulic cylinders with hydraulic power components, dual 12′′ electric drum brakes, 50mm square solid axles, and 8-leaf leaf springs for enhanced stability and smooth traction. The trailer also features 1500mm tie rods, a lattice floor, removable front and rear doors, tie rods, and a steel toolbox. Optional 600mm/900mm removable cages are available. With internal dimensions of 3045mm x 1830mm x 300mm, it is ideal for construction, agriculture, and landscaping tasks.
| Specification | Value |
|---|---|
| Trailer Size | 4560mm*2330mm*1650mm |
| Drawbar | 120x60x3.5mm |
| Internal Size | 3045mm*1830mm*300m |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 4000kg |
| Weight of the skin | 1350kg |
| Guide wheel | 10 inches |
| Fully welded | Yes |
| Pattern board | 2.3 pattern |
| Cage | 40*40*3 Net: 63*60*4 |
| Spring | 8 pieces |
| Beam | 100*50*3 |
| Brake | 12-inch dual-axis electric brake |
| Certification | 9001/TS 16949,CCC,CE,ADR,DOT |
| Category | Hydraulic Tipper trailers |
|
|
